Dipole Antennas

 A dipole antenna is one of the most fundamental and widely used antennas in amateur radio, valued for its simplicity, efficiency, and reliable performance. It consists of two conductive elements of equal length, typically arranged in a straight line and fed at the center with coaxial cable or ladder line. A classic half-wave dipole has a total length of approximately 468 divided by the frequency in MHz (in feet), making it easy to calculate and build for a specific band. Dipoles provide a balanced radiation pattern that is broadside to the wire and can be mounted horizontally for general HF operation or as an inverted-V for easier support with a single mast. Because of their low cost, ease of construction, and solid on-air results, dipoles are often the first antenna many amateur radio operators build—and many seasoned operators continue to rely on them for dependable performance.

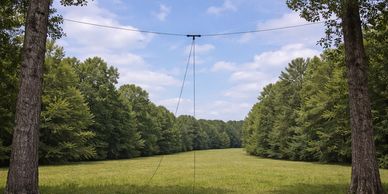

 A wire dipole antenna is a simple, efficient, and widely used antenna in amateur radio, consisting of two equal lengths of wire joined at a center feed point. Typically cut to approximately a half wavelength for the desired frequency, a wire dipole offers a predictable radiation pattern that is strongest broadside to the wire and provides solid performance for both regional and long-distance contacts depending on its height above ground. It can be installed horizontally between trees or supports, configured as an inverted-V with a single mast, or even used as a sloper. Wire dipoles are inexpensive, easy to build, and highly effective, which makes them a favorite choice for home stations, field operations, and emergency communications alike.

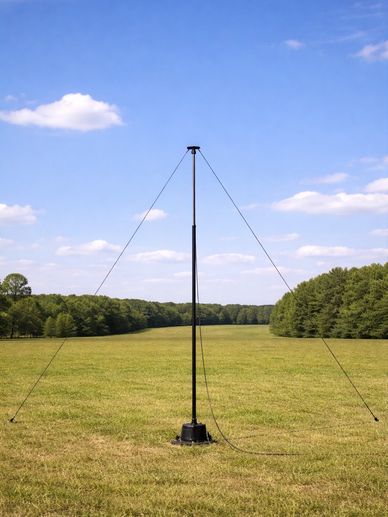

 An inverted-V dipole is a variation of the traditional half-wave dipole in which the center is elevated on a single support and the two legs slope downward at an angle, forming a “V” shape. This configuration allows operators to deploy an effective HF antenna using just one mast or tree, making it ideal for portable operations, Field Day setups, or locations with limited supports. The inverted-V maintains many of the same characteristics as a horizontal dipole, producing a broadside radiation pattern, but the sloping elements slightly lower the feed-point impedance and can provide a more omnidirectional pattern on some bands. It is easy to construct from simple wire, performs reliably across amateur HF bands, and is especially popular for its practicality and solid on-air performance.

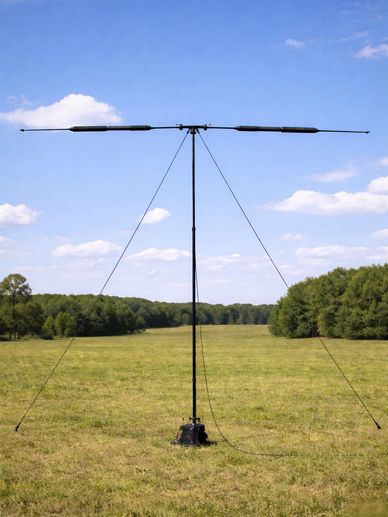

 A dipole antenna using hamsticks is a compact and portable variation of the classic half-wave dipole, commonly used by amateur radio operators for mobile and field operations. Instead of full-length wire elements, this design uses two loaded hamstick antennas mounted horizontally from a dipole adapter or center mount, with each hamstick acting as one half of the dipole. The loading coils built into the hamsticks electrically lengthen the antenna, allowing operation on HF bands like 40, 20, 17, 15, 12, 10 or 6 meters while keeping the physical size manageable. This makes hamstick dipoles especially popular for portable setups such as POTA, field operations, temporary home installations, or even balcony mounting where space is limited. While they may not match the efficiency of a full-size wire dipole, hamstick dipoles offer convenience, quick band changes, and solid performance in a small footprint.

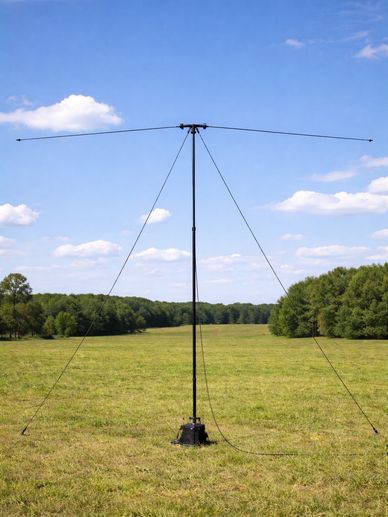

 The Alpha Antenna HexTenna configured as a dipole is a rigid, multi-band portable antenna designed for efficient HF operation in a compact form factor. In dipole mode, it uses adjustable telescopic elements extending from a central feed point, creating a balanced, bi-directional radiation pattern broadside to the antenna. This configuration provides strong signal performance with low-angle radiation suitable for DX as well as dependable regional coverage depending on height and band selection. The HexTenna dipole is resonant on multiple bands through adjustable element lengths, allowing operators to fine-tune for specific frequencies without requiring a large wire installation. Its self-supporting structure and quick setup make it especially attractive for portable operations such as Parks on the Air (POTA), field days, and emergency communications, where a durable, efficient, and easy-to-deploy dipole is needed.

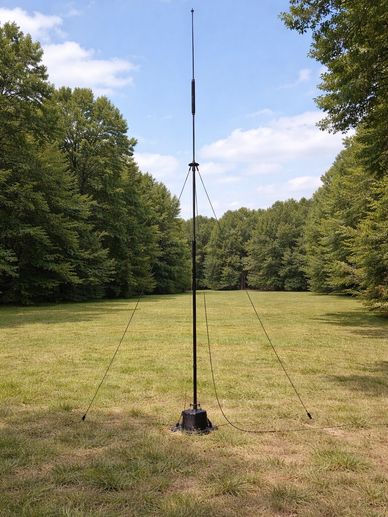

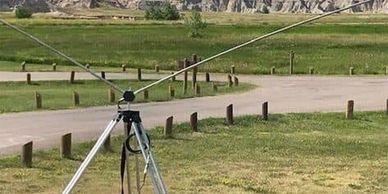

  Vertical and sloping dipoles are practical variations of the traditional half-wave dipole that offer different radiation characteristics depending on how they are installed. A vertical dipole is mounted straight up and down, often supported by a mast or suspended from a tree, and it produces an omnidirectional radiation pattern with low takeoff angles that are excellent for DX contacts. Because it is a balanced antenna, it does not require a ground radial system like a quarter-wave vertical. A sloping dipole, on the other hand, is installed at an angle from a high support down toward the ground, which can introduce some directional characteristics in the direction of the slope while still maintaining much of the dipole’s efficiency. Both configurations are popular in amateur radio for portable operations, limited-space installations, and situations where achieving the right radiation angle for propagation is important.
